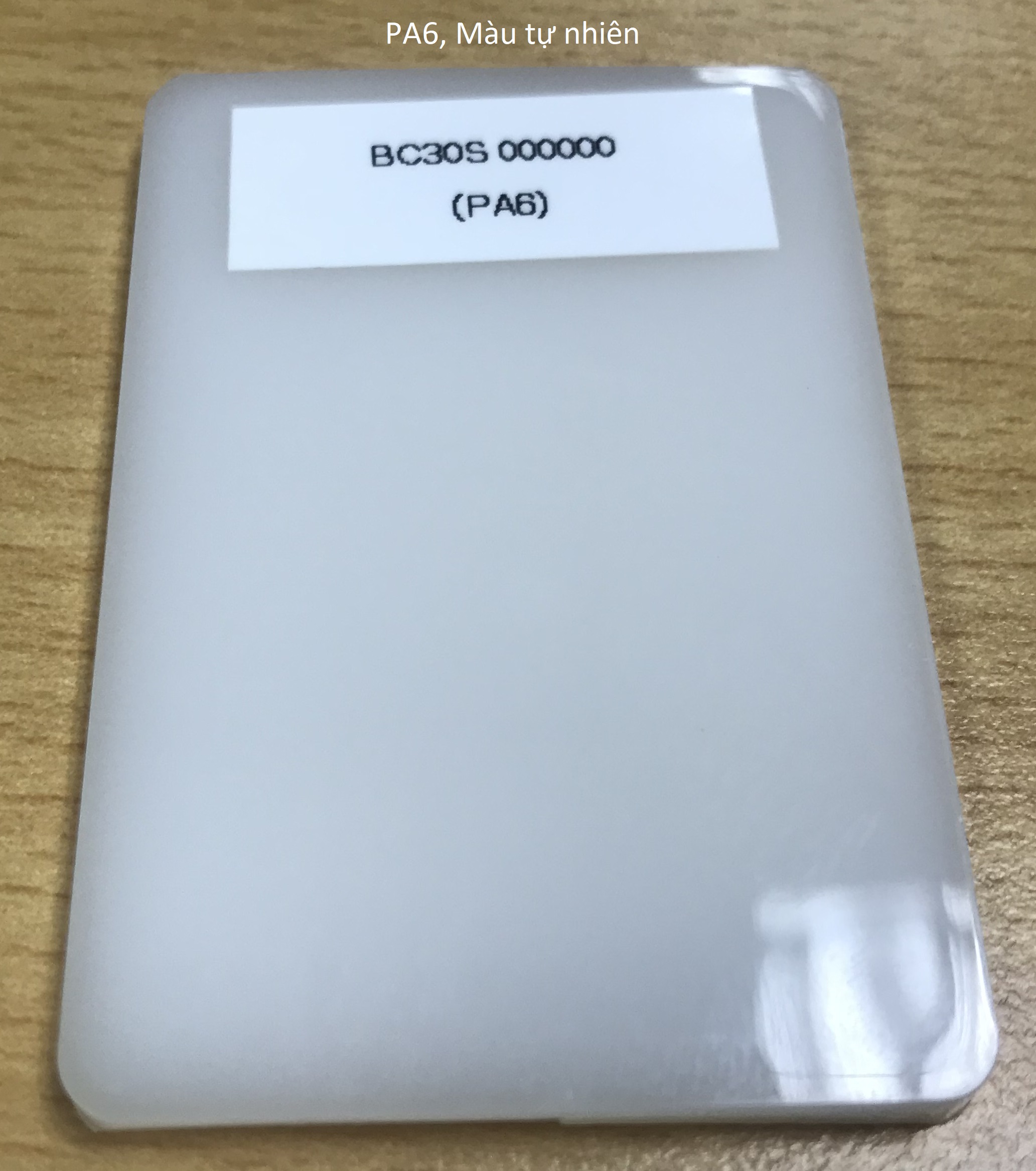

Hạt nhựa PA6 Durethan BC30S (màu tự nhiên & màu đen)

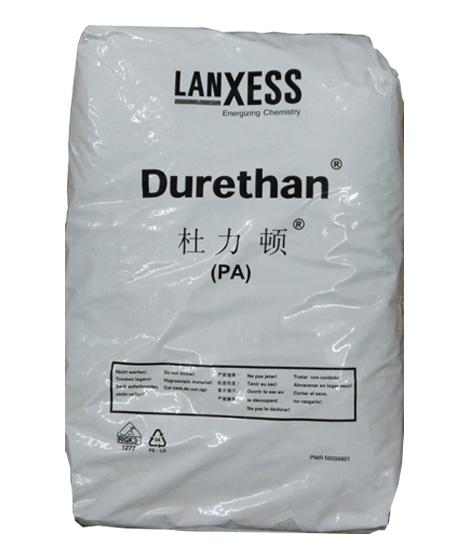

Đóng gói: 25kg/bao
Hãng sản xuất: Lanxess
Xuất xứ: Ấn Độ / Trung Quốc
Hàng có sẵn
Đóng gói: 25kg/bao
Xuất xứ: Ấn Độ/Trung Quốc
Ứng dụng:
Bộ nối CEE, thiết bị đầu cuối, linh kiện điện gia dụng, xe máy, xe hơi, dụng cụ khí động, máy móc, thiết bị thể thao
PA 6, non-reinforced, injection molding ISO Shortname: ISO 1874-PA 6, GR, 14-030 |
| |||||
Property | Test Condition | Unit | Standard | guide value d.a.m. |
cond. |
|
Rheological properties |
|
|
|
|
|
|
C Molding shrinkage, parallel | 60x60x2; 270 °C / WZ 80 °C; 600 bar | % | ISO 294-4 | 1 |
|
|
C Molding shrinkage, transverse | 60x60x2; 270 °C / WZ 80 °C; 600 bar | % | ISO 294-4 | 0.9 |
|
|
Post- shrinkage, parallel | 60x60x2; 120 °C; 4 h | % | ISO 294-4 | 0.3 |
|
|
Post- shrinkage, transverse | 60x60x2; 120 °C; 4 h | % | ISO 294-4 | 0.3 |
|
|
Mechanical properties (23 °C/50 % r. h.) |
|
|
|
|
|
|
C Tensile modulus | 1 mm/min | MPa | ISO 527-1,-2 | 3200 |
| 1000 |
C Yield stress | 50 mm/min | MPa | ISO 527-1,-2 | 80 |
| 45 |
C Yield strain | 50 mm/min | % | ISO 527-1,-2 | 4 |
| 24 |
C Charpy impact strength | 23 °C | kJ/m² | ISO 179-1eU | n.g. |
| n.g. |
C Charpy notched impact strength | 23 °C | kJ/m² | ISO 179-1eA | <10 |
| 30 |
C Charpy notched impact strength | -30 °C | kJ/m² | ISO 179-1eA | <10 |
| <10 |
Izod impact strength | 23 °C | kJ/m² | ISO 180-1U | n.g. |
| n.g. |
Izod impact strength | -30 °C | kJ/m² | ISO 180-1U | 200 |
|
|
Izod notched impact strength | 23 °C | kJ/m² | ISO 180-1A | <10 |
| 20 |
Izod notched impact strength | -30 °C | kJ/m² | ISO 180-1A | <10 |
| <10 |
Flexural modulus | 2 mm/min | MPa | ISO 178-A | 2800 |
| 1000 |
Flexural strength | 2 mm/min | MPa | ISO 178-A | 105 |
| 40 |
Flexural strain at flexural strength | 2 mm/min | % | ISO 178-A | 6.0 |
| 7.0 |
Flexural stress at 3.5 % strain | 2 mm/min | MPa | ISO 178-A | 90 |
| 30 |
C Puncture maximum force | 23 °C | N | ISO 6603-2 | 5000 |
|
|
C Puncture maximum force | -30 °C | N | ISO 6603-2 | 4400 |
|
|
C Puncture energy | 23 °C | J | ISO 6603-2 | 55 |
|
|
C Puncture energy | -30 °C | J | ISO 6603-2 | 25 |
|
|
Thermal properties |
|
|
|
|
|
|
C Melting temperature | 10 °C/min | °C | ISO 11357-1,-3 | 221 |
|
|
C Temperature of deflection under load | 1.80 MPa | °C | ISO 75-1,-2 | 66 |
|
|
C Temperature of deflection under load | 0.45 MPa | °C | ISO 75-1,-2 | 172 |
|
|
C Coefficient of linear thermal expansion, parallel | 23 to 55 °C | 10-4/K | ISO 11359-1,-2 | 1.0 |
|
|
C Coefficient of linear thermal expansion, transverse | 23 to 55 °C | 10-4/K | ISO 11359-1,-2 | 0.8 |
|
|
Other properties (23 °C) |
|
|
|
|
|
|
C Density |
| kg/m³ | ISO 1183 | 1122 |
|
|
Processing conditions for test specimens |
|
|
|
|
|
|
C Injection molding-Melt temperature |
| °C | ISO 294 | 270 |
|
|
C Injection molding-Mold temperature |
| °C | ISO 294 | 80 |
|
|
Test Condition | Unit | Standard | guide value d.a.m. cond. | |
Processing recommendations |
|
|
|
|
Drying temperature dry air dryer |
| °C | - | 80 |
Drying time dry air dryer |
| h | - | 2-6 |
Residual moisture content |
| % | Acc. to Karl Fischer | 0.03-0.12 |
Melt temperature (Tmin - Tmax) |
| °C | - | 260-280 |
Mold temperature |
| °C | - | 80-90 |
C These property characteristics are taken from the CAMPUS plastics data bank and are based on the international catalogue of basic data for plastics according to ISO 10350.
